Nesting algorithms are now offered with focus on either coil strip nesting - BLANKNEST and CATNEST - or layouts for progression dies - PROGNEST

Please contact us to arrange a trial licence View or Download Brochure

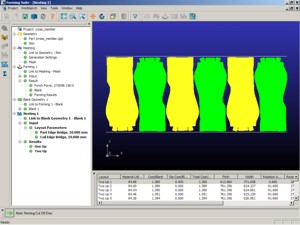

Coil strip nest created by BLANKNESTBLANKNEST is powerful nesting software specifically designed for nesting sheet metal blanks on coils.

It automatically calculates the best nesting layout to optimize material utilization based on coil width and pitch constraints. And for CATIA V5 users the same features are now available integrated as CATNEST.

BLANKNEST optimises material usage through geometric nesting of blanks

• Automatically nests for best material utilization for one-up and two-up layouts
• Quickly and accurately estimates your material requirements with drastic reduction of risk related to inaccurate material cost calculations; reduces supplier variation between estimate and actual costs from 25% to within 1-2%
• Evaluates multiple nesting scenarios quickly; process 50 times more quotes than manual calculations
• Accurately determines total cost per blank including more accurate scrap estimates for material rebates

"BLANKNEST increased the coils utilization from 60% to 79% resulting in a nest that was over four pounds lighter. Amazingly over the 6-year lifecycle, $4,272,450 is the actual cost savings that is being applied towards a current automotive program."
Scott Moore, Spartanburg Steel Product, USA

"Get more parts per workpiece. Forming Technologies' BlankNest optimizes nesting for blanking, based on raw coil width and pitch." Article on how Nesting software optimizes layout for specific fabrication processes.
September, 2003. Forming & Fabricating®. Copyright by Society of Manufacturing Engineers, used with permission. Vol 10 No 9

FEATURES:

• Imports blank shape from IGES, DXF file types and other FTI software
• Produces fully optimized nesting layouts for both one-up and two-up nesting configurations
• Nests different blank shapes and left and right-hand blanks in the same layout
• Constrains pitch, coil width and blank rotation (grain direction) to ensure layout is compatible with available equipment and product requirements
• Calculates accurate cost per blank based on supplied input data & material usage

Download Brochure (left mouse to open, right mouse to save to local disk)

System Requirements:
All systems should have a minimum of 512MB RAM and 1GB free disk space.

Platform Operating System Version Graphics
PC MS Windows 2000/XP System must support 1024x768 resolution with minimum 32768 colours.



Top






View or Download Brochure

Please contact us to arrange a trial licence



Blank nesting in CATIACATNEST is the Most Accurate Tool for Optimal Coil Utilization (Nest) of Blank Shapes for Estimators and Tool Engineers

• Drastic reduction of risk related to inaccurate material cost calculations; reduces supplier variation between estimate and actual costs from 25% to within 1-2%
• Full associativity and regeneration enable a 70% productivity improvement in Engineering Efficiency to manage complex variations, as compared to non-CAAV5 products
• Process 50 times more quotes than manual calculations
• More accurate scrap estimates for material rebates

Blank nesting in CATIAThe CAA enabled CATNEST reduces Collaboration Lag (time to communicate a change and obtain feedback), and hence results in 50% fewer engineering changes, since the analysis is current with the geometry

FEATURES:

• Capitalizes on the seamless integration with native geometry in CATIA V5
• Flexible setup - Optional pitch, coil width, and blank angle constraints to match available equipment and product requirements
• Multiple Nesting layouts - Fully optimized one up, two up, and standard blank shape nesting layouts
• Multi-Part Nesting - Two different parts that are manufactured together
• Interactive results - sort results in an interactive spreadsheet by material utilization, coil width, pitch, rotation angle & translation, with related nesting preview
• All results are stored in the standard CATPart file for ease of PLM integration; analyses are fully associated with CATIA model and automatically update to reflect current design whenever results are viewed with zero risk of downstream misuse of out-of date analysis results

• User can edit nest layout with standard CATIA V5 tools

Download Brochure (left mouse to open, right mouse to save to local disk)


System Requirements:
All systems should have a minimum of 512MB RAM and 1GB free disk space.

Platform Operating System CATIA Versionn Graphics
PC MS Windows 2000/XP CATIA V5 R14 to R17 (requires GPS module) System must support 1024x768 resolution with minimum 32768 colours.

Note:

  • for product feasibility analysis in CATIA see CATFORM
  • for blank development in CATIA see CATBLANK
  • for analysis of tooling feasibility within CATIA see also CATSTAMP




Download software and request a free 7 day trial licence View or Download Brochure

Progressive Die nest created by PROGNESTThe Most Powerful nesting software to optimize progressive die nesting layout to improve material utilization and calculate costs.

Up to nine different layout configurations can be calculated and compared. And by using both BLANKNEST and PROGNEST, cost comparisons can be made between different process routes for the same part.

The same method is also available integrated in CATIA - PROGNEST CAA V5 (contact us for further details and a trial installation).

FEATURES:

• Produces fully optimized nesting layouts for 1-up, 2-up, and mirrored progressive die configurations
• Constrains progression, coil width, and blank rotation to ensure the layout is compatible with manufacturing equipment
• Calculates accurate cost per blank based on supplied input data and material utilization
• Material cost calculation considers variations in thickness and coil width
• Detailed documentation system produces HTML format reports
• User input for distance between blanks, distance to edge of coil, carrier allowance and carrier width

Download Brochure (left mouse to open, right mouse to save to local disk)

System Requirements:
All systems should have a minimum of 512MB RAM and 1GB free disk space.

Platform Operating System Version Graphics
PC MS Windows 2000/XP System must support 1024x768 resolution with minimum 32768 colours.
